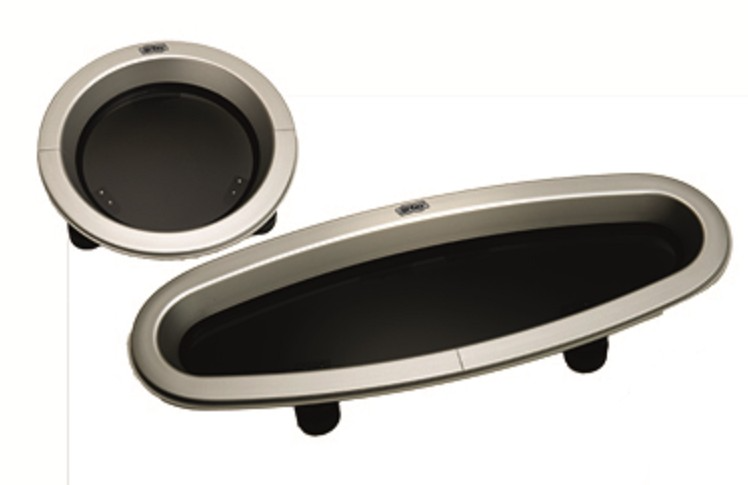

Standard Series Round Portlight Fixed - 198 - 81.20.81.00

Description

Gebo portlights are made from anodised aluminium and have a standard smoke grey acrylic sheet of 10mm thickness. All parts are constructed from non-corrosive materials.

NON-DRIP DESIGNii8i8uuuuu7The smooth angled outer frame prevents water from collecting on the frame and dripping into the cabin when the portlight is opened.

CERTIFIED FOR HULL FITTING

The Gebo standard portlights are certified for fitting in the hull. This applies to both fixed and opening portlights. As Gebo portlights are manufactured bij CNC controlled machines, any accessories that are purchased afterwards always fit smoothly on the portlights.

All parts, such as rubbers and knobs, are easily available, even after a longer period, through our worldwide dealer network.

As standard the portlight is being manufactured with grey smoke acrylic. Clear, bronze and green acrylic is available to special order.

All parts are constructed from non-corrosive materials. Powder-coating of the frame to any RAL color you specify is also available.

WATERTIGHT DESIGN

Unlike many designs, Gebo portlights are designed for watertight hull fitting, so there's no problem when a heeling yacht places the portlight against the pressure of fast running water.

Portlights Should be fitted to a flat surface with a maximum tolerance of 1mm.

Specifications

• Cut-out size L × W (mm): 198
• Overall size L × W (mm): 223
• Acrylic (mm): 143
