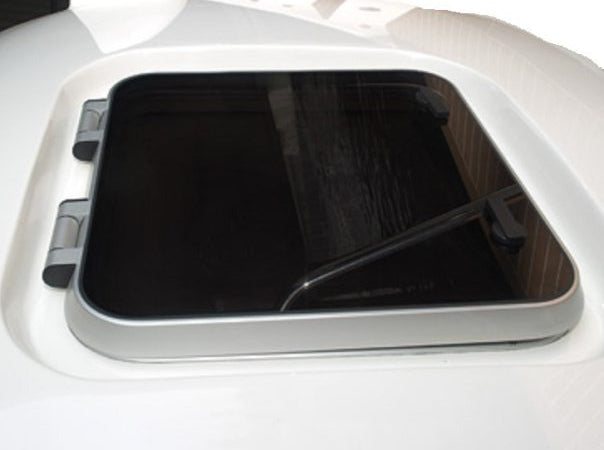

Standard Series Deck Hatch with Flange 450 × 320 Smoke Gray - 80.21.10.00

Description

STANDARD DESIGN

For a smoother profile, the frame on our standard hatches has been extended to fit flush against the base mounting. The base mounting screws are covered by the frame for a smoother appearance and extra safety.
Deep grooves in the lower frame provide a 100% watertight assembly.

STEPLESS OPENING, TO 180°, PLUS EASY HINGE ADJUSTMENT

Heavy duty friction hinges secure the hatch in any position from ventilation to full 180°. Hinges are also easily adjustabe to suit the user.
The Gebo's unique Airco-Lock theft-proof ventilation setting let's fresh air in while the crew rest or when the boat is unattended.
The hatch is locked from the inside, either in the ventilation or in the fully closed position.

UNIQUE DEEP-DOCK WATER GROOVE

A deep in the lower frame keeps water from coming in when the hatch is open.

Specifications

• Cut-out size L × W (mm): 450 × 320
• Radius mm: 55
• Overall size L × W (mm): 505 × 375
• Radius mm overall: 83
• Acrylic (mm): 10
